熱壓機系列

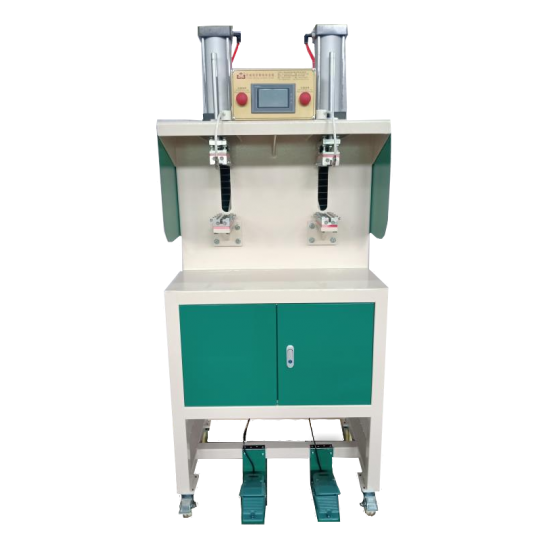

YW-848FA 3D立體雙頭熱壓機

YW-848FA
3D立體雙頭熱壓機
3D DOUBLE HEAD HOT PRESSING MACHINE
詳細介紹
機器技術參數/ Specifications :

型號 Model YW-848FA
功率 Power 3.3KW
電壓 Voltage 220V
行程 Press route 200MM
加熱板面積 Heating Plate Size 60*200MM
機台尺寸 Machine Size  80*55*190CM

特性/ Features :

1.站立性的操作 : 保持操作人員的機動性 , 加速加工流程 , 提高效率。
This machine is a stand-operate version of hot pressing machine. The purpose of this design is to keep operators’ flexibility during operating process. With the design for operators to act quick, both production and efficiency will increase.

2. 3D 立體雙頭熱壓機適用於熱壓成型鞋子後跟熱壓, 側面熱壓,以及鞋面接合處的壓合
3D double head hot pressing machine is used for heels, the side of the shoes and the connection on the vamp of the shoes’ thermoforming.

3.本機採用氣壓式(或增壓缸)設計 , 節約能源。
This machine saves energy from its pneumatic (cylinder) design.

4. YW 848FA 是上下層加熱的熱壓機。
YW-848FA provides heat from both the upper and lower plate.

5. 本機左右工作區之溫度和時間可分開設定
The temperature and time setting of right and left work stations are controlled separately.

6. 本機有自動和手動模式,手動模式方便對準上下模。
YW-848FA has automatic and manual mode, which is convenient to align the upper and lower molds.

7. 觸控式顯示幕+PLC+溫度模組+SSR精准控溫、操作使用更方便。
YW-848FA is easy to operate with touch screen, PLC, temperature module and SSR precise temperature control.
