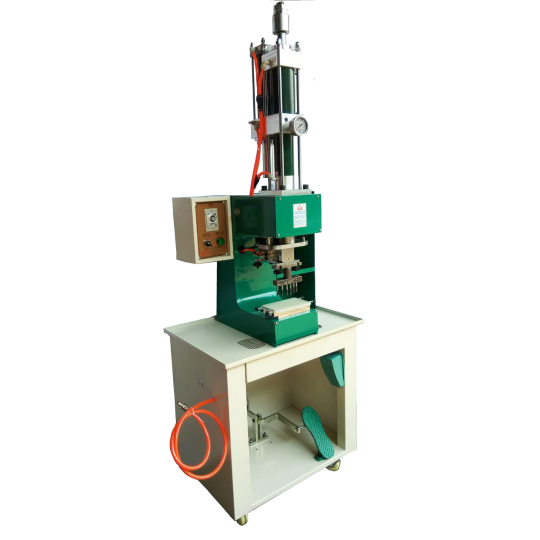

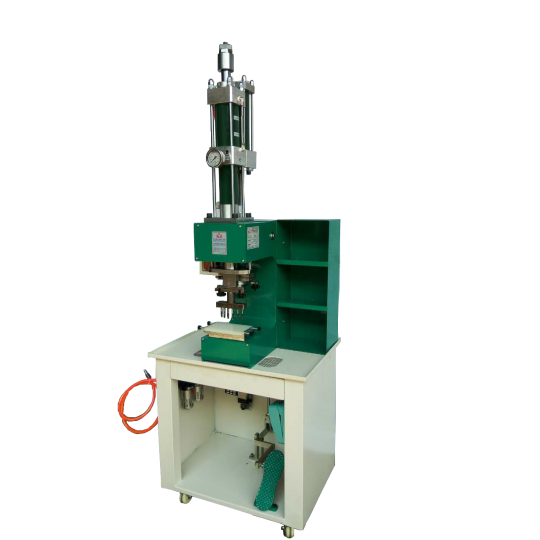

| 型號 Model | YW-708A-SHY |
| 機器尺寸 Machine Size | 70*50*200CM |
| 淨重 Net Weight | Approx. 130KG |
| 毛重 Gross Weight |
Approx. 200KG |
| 增壓缸最大壓力 Max Press | 3T |
| 電源 Voltage | 220V |
| 電源入力 Input Power | 50KVA |
特性/ Features：
1. 適合鞋面沖孔使用, 一次可沖一排的孔
This machine is used for punching holes in a row simultaneously on shoes vamps.
2. 操作簡單, 需利用氣源以及電源的輔助即可操作
YW-708A-SHY is easy to operate; it only requires air pressure and electric power to punch holes.
3. 增壓缸沖孔力道最大一次可達3噸
The maximum power for this pressurized cylinder punching machine is up to 3 tons.
4. 自動轉換頭 : 本機搭載雙沖孔頭，可以自由轉換，來完成雙邊沖孔任務，提升加工效率
Auto-switching of punching molds: Punching molds are switchable to match with manufacturing needs. This machine is capable to punch various requirements, with this feature, the productivity increases.
5. 模具可以自由拆卸、安裝，依照沖孔需求，更換沖孔模具
Punching molds holder is designed for mold changing purpose. Operator can easily re-install different punch molds based on various type of punching tasks.
6. 沖孔模式 Punching Mode:
- 自動沖孔模式: 操作員先緩慢的踩下右腳踏板對準沖孔位置，向下到感應位子後，會自動完成沖孔動作
- Auto Punching Mode: With the special design of this machine, the sensor in this machine will help finishing punching automatically after the operator steps on the right foot-switch to bring punch mold close to the material.
7. 增壓缸行程可調整 : 本機器採用可調整行程之增壓缸，可依照加工需求，作微調行程
Cylinder Route Adjustable: This machine is designed with adjustable cylinder routes. With this design, operator is able to make changes for the routes based on various punching requests.
