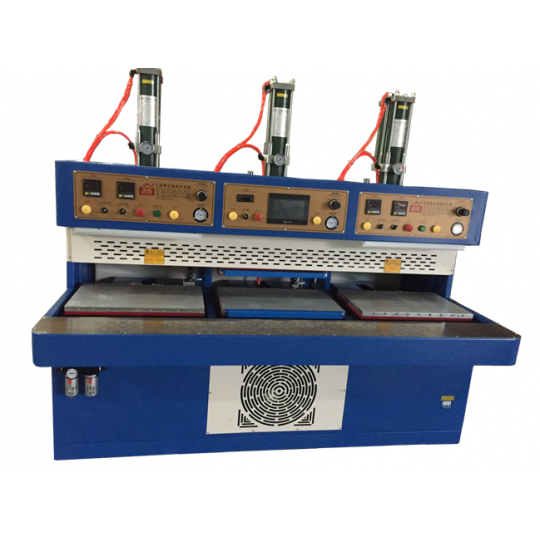

YW-806-3SC 二熱一冷無車縫熱壓機

YW-806-3SC
二熱一冷無車縫熱壓機
No-Sew Three Cylinder Hot Pressing Machine (3 in 1, two hot ...
詳細介紹
技術參數/ Specifications :
型號 Model YW-806-3SC
功率 Power 20KW
電壓 Power Voltage AC 380V 50HZ
工作面積 Hot Plate Work Area 600*500MM
最大壓力 Max Press force 15T
氣壓 Air-Cylinder Pressure 0.5mpa.1.7/mln
淨重 Net Weight Approx. 2700KG


​​特性/ Features :

1. 二熱一冷的搭配設計,當完成熱壓貼合成型後,能馬上移動到冷壓機上做冷卻定型,確保熱壓後成品的品質。每當其一程序完成後,不必花費時間在等待上,人員可移動到另一個工作面擺料加工,達到提高產量、節省時間的效果。
YW-806-3SC contained 2 hot presses (left and right) and 1 cold press (middle), it aims to raise production quality and efficiency. After the heat-press process, operator quickly shift input material to the cold-press plate for shaping purpose; cold press is done to keep the shaping result of the heat-press input material for good quality. The operator’s production efficiency is raised by no time is wasted during operation; during processing, input will be processed one after another, which operator can place another piece of material while waiting the other plates.

2. 本機台加裝上硅膠開合裝置覆蓋加工面板,利於操作人員取放物料,減少加工流程,增加產量,也避免操作人員自行移動硅膠時潛在的危險。
During operation, silicon mat is automatically covered, thus the operator rises their productivity by less action taken, but the system also protect them from the heat or any potential harm.

3. 機臺均按人體工學設計,操作方面以人員安全為考量。
This machine adopts pneumatic/oil YW-806-3SC is an ergonomic model and it not only reduces fatigue of operator, but it is also designed for safe work environment.

4. 本機採用PLC控制面板,數位化的管理更好的精準加工,提高成品品質。
YW-806-3SC is managed by PLC computerized control; process is all digitalized set, it provides great precision operation and great quality result.

5. 本機裝有SSR固態繼電器,確保溫度的精準。
The SSR device installed upgrades machine’s temperature control ability for raising output quality.

6.本機可另外加裝電腦控溫系統,利於溫度管控。
It is optional to add an extra computerized temperature control system, it will upgrade machine’s temperature control ability to another level.
